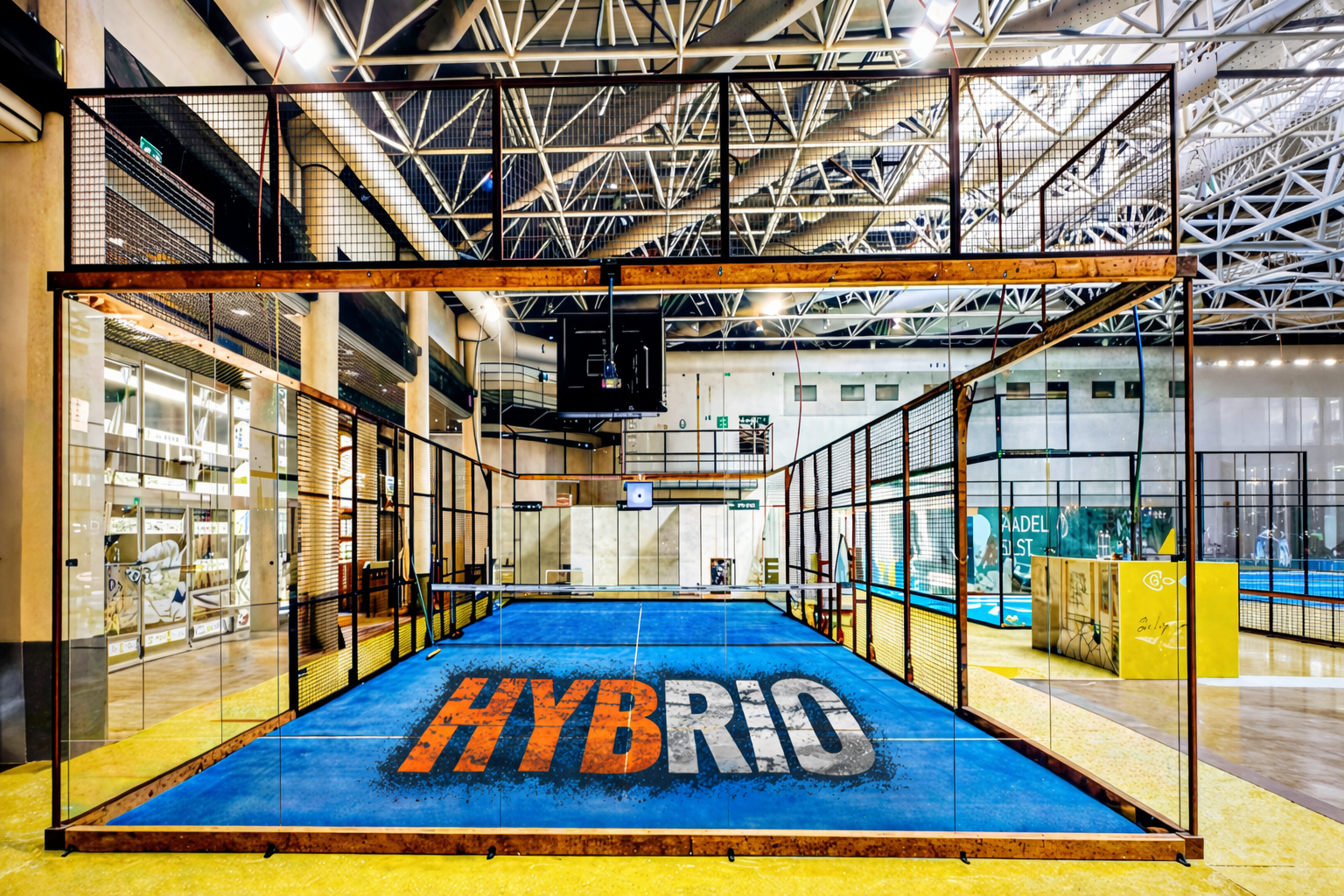

HYBRID
(Unique Design)
The contrast between treated and laminated wood and hot-dip galvanized steel gives this model beauty and elegance, highlighting the uniqueness of Italian design.
-HYBRID is designed to offer structural strength and a handcrafted visual impact.
HYBRID
(Unique Design)
The contrast between treated and laminated wood and hot-dip galvanized steel gives this model beauty and elegance, highlighting the uniqueness of Italian design.
-HYBRID is designed to offer structural strength and a handcrafted visual impact.
Structure
Glass
Lighting
Turf
Structure
Glass
Structure . composed of self-supporting elements made of 80x40x3 mm and 40x40x3 mm tubular steel, integrated with an upper welded mesh. The entire system is anchored to a reinforced concrete base by 100/10 mm thick steel plates equipped with 50/10 mmvertical steel reinforcementsensuring high stability - and structural strength.
Struttura pareti vetri: reinforced in legno.
Le travi in legno misurano 240×120 mm alla base e nella parte al di sopra dei vetri. Mentre quelle dei lati più lunghi misurano 160×120 mm.
I pilastri sugli angoli: sono fatti di tubolari 40x40x3 mm. Le viti e i bulloni per l’installazione sono in acciaio zincato.
The glass panels are made of high-strength tempered glass, with processed and beveled edges, and are available in the following configurations: 12 mm monolithic thickness or laminated 6+6 mm, in order to ensure high standards of safety and durability.
Lighting
Turf
Side Structure: composed of self-supporting elements made with tubular steel 80x40x3 mm and 40x40x3 mm, integrated with an upper welded mesh. The entire system is anchored to a reinforced concrete base by means of steel plates with a thickness of 100/10 mm, equipped with vertical steel reinforcements of 50/10 mm, to ensure high stability and structural strength.
Glass wall structure: is made of wood. The wooden beams measure 240×120 mm at the base and in the upper part above the glass panels, while those on the longer sides measure 160×120 mm.
Corner columns: are made of 40x40x3 mm tubular sections. The screws and bolts used for installation are made of galvanized steel.
The glass panels are made of high-strength tempered glass, with processed and beveled edges, and are available in the following configurations: 12 mm monolithic thickness or laminated 6+6 mm, in order to ensure high standards of safety and durability.
The lighting fixtures are available with three different levels of luminous intensity, equal to 17,500, 18,500, and 23,000 lumens, in order to ensure adequate visibility during evening and nighttime hours.
The playing surface is made of synthetic turf carpet, available in fibrillated or texturized types, selectable according to playing performance and the required level of comfort. Available in various colors, including green, blue, and red.
The lighting fixtures are available with three different levels of luminous intensity, equal to 17,500, 18,500, and 23,000 lumens, in order to ensure adequate visibility during evening and nighttime hours.
The playing surface is made of synthetic turf carpet, available in fibrillated or texturized types, selectable according to playing performance and the required level of comfort. Available in various colors, including green, blue, and red.
All court structures undergo hot-dip galvanization followed by oven powder coating in the color selected by the client; the assembly hardware is made of stainless steel to ensure high corrosion resistance and long-lasting durability over time.
All court structures undergo hot-dip galvanization followed by oven powder coating in the color selected by the client; the assembly hardware is made of stainless steel to ensure high corrosion resistance and long-lasting durability over time.
Other Models
Other Models
Top-of-the-Range Entry-Level Padel Court: strength and durability.
- Hot-dip galvanized structure
- Vetri temperati da 10 o 12mm
- Fibrillated/textured turf
- High-efficiency LED lighting
Mid-Range Padel Court: our best-selling and most high-performing model.
- Hot-dip galvanized structure
- 12 mm tempered glass panels
- Fibrillated/textured turf
- High-efficiency LED lighting
Premier Padel Court: uncompromising excellence.
- Hot-dip galvanized structure
- 12 mm tempered glass panels
- Fibrillated/textured turf
- High-efficiency LED lighting
Top-of-the-Range Entry-Level Padel Court: strength and durability.
– Hot-dip galvanized structure
– Vetri temperati da 10 o 12mm
– Tappeto fibrillato/ testurizzato
– High-efficiency LED lighting
Mid-Range Padel Court: our best-selling and most high-performing model.
– Hot-dip galvanized structure
– 12 mm tempered glass panels
– Tappeto fibrillato/ testurizzato
– High-efficiency LED lighting
Premier Padel Court: uncompromising excellence.
– Hot-dip galvanized structure
– 12 mm tempered glass panels
– Tappeto fibrillato/ testurizzato
– High-efficiency LED lighting
HURRICANE-RESISTANT LINE
HURRICANE-RESISTANT LINE
HURRICANE-RESISTANT Padel Court: extreme durability & iconic design
- Hot-dip galvanized and reinforced structure
- 12 mm tempered glass panels
- Fibrillated/textured turf
- High-efficiency LED lighting
HURRICANE-RESISTANT Padel Court: extreme durability & iconic design
- Hot-dip galvanized and reinforced structure
- 12 mm tempered glass panels
- Fibrillated/textured turf
- High-efficiency LED lighting
